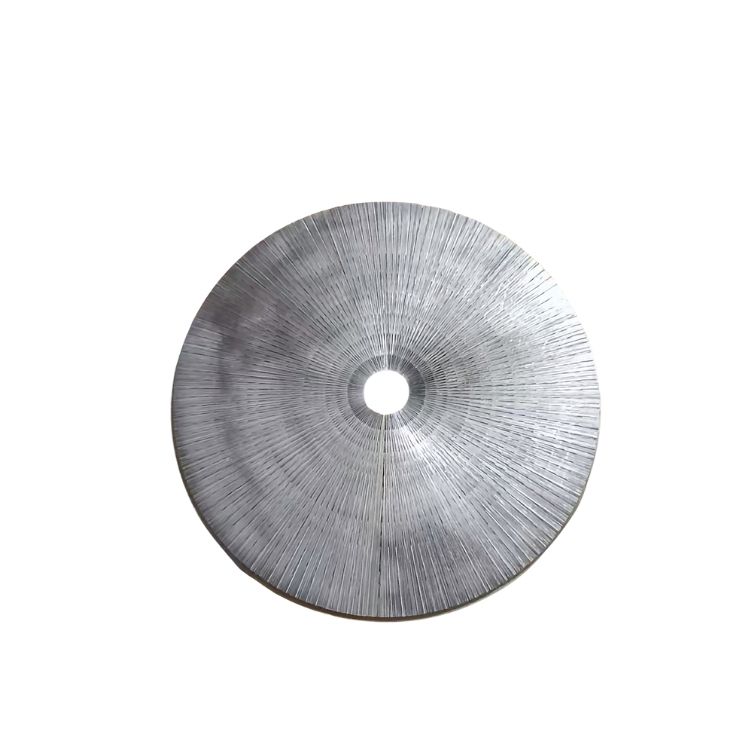

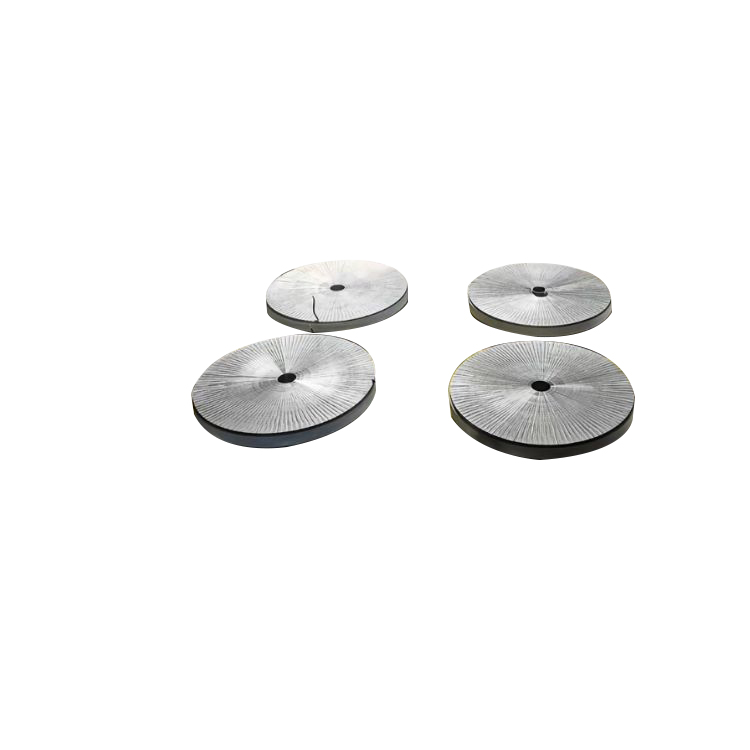

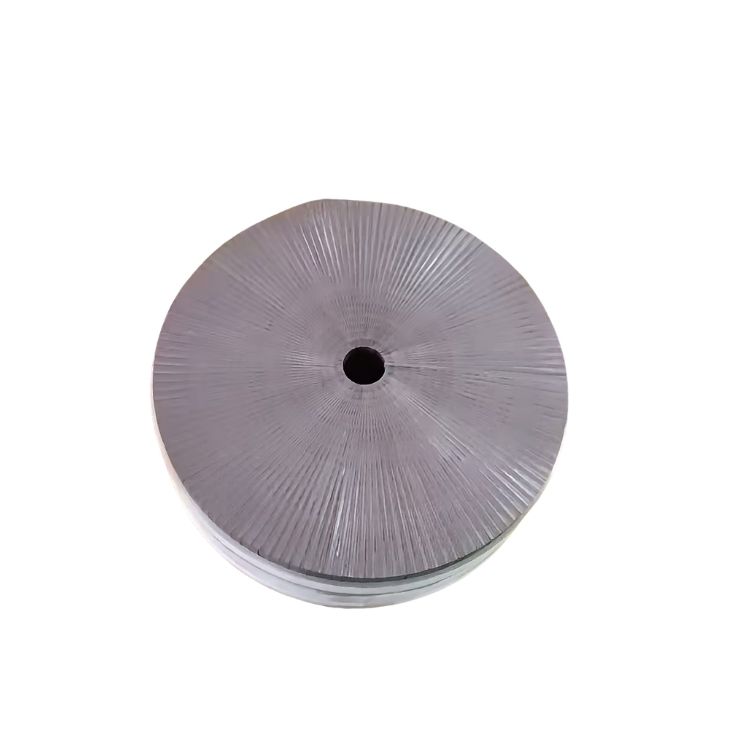

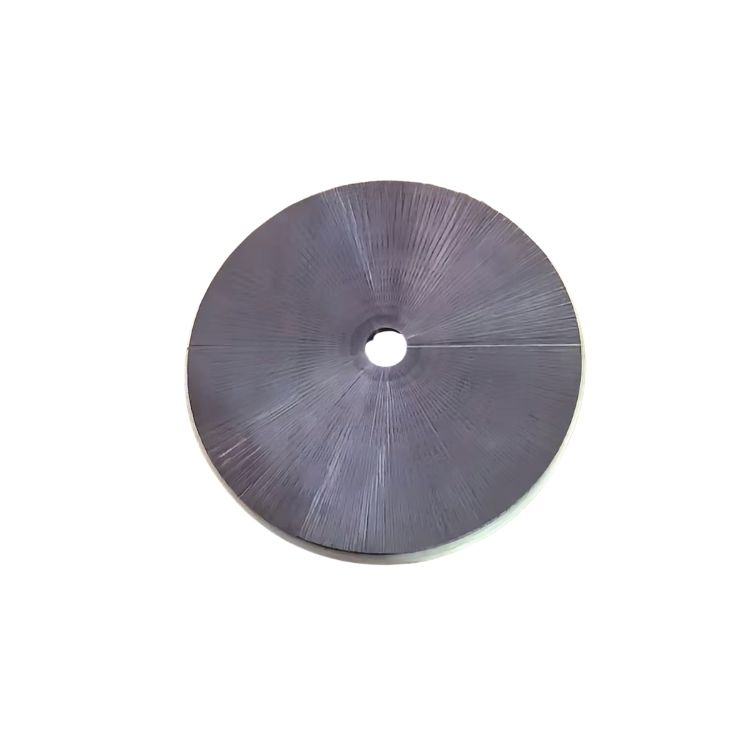

High Voltage Reactors Core - Right Angle Stacked Core - Low Loss - High Stability - Power Inductor Core

Right Angle Stacked Core - High - Performance Magnetic Core for High Voltage Reactor Applications

Right Angle Stacked Core is a specialized electrical core designed for high voltage reactor systems. It is constructed from premium - grade silicon steel or amorphous metal sheets, stacked in a precise right - angle configuration. This unique structural design optimizes magnetic flux distribution, making it ideal for managing high voltage and high inductance requirements in power transmission and distribution networks. The core undergoes strict lamination and annealing processes to ensure low hysteresis loss and superior magnetic consistency.

Low Core Loss

The high - quality magnetic materials and precise stacking technique minimize hysteresis and eddy current losses, even under high voltage and high frequency operating conditions. This feature enhances the energy efficiency of reactors, reducing heat generation and long - term operational costs.

High Structural Stability

The right - angle stacking design provides robust mechanical integrity, enabling the core to withstand strong electromagnetic forces and mechanical vibrations in high voltage environments. Its rigid structure ensures minimal deformation during installation and operation, guaranteeing stable performance over extended service life.

Excellent Magnetic Uniformity

By optimizing the stacking angle and layer thickness, the core achieves uniform magnetic flux density across its cross - section. This reduces magnetic saturation and leakage, improving the reliability of high voltage reactors and minimizing interference with adjacent electrical components

Common Applications

High Voltage Power Systems

Widely used in high voltage transmission lines and substations, Right Angle Stacked Core enhances the inductance stability of reactors, supporting efficient voltage regulation and fault current limitation. It is critical for maintaining grid stability in utility-scale power networks.

Industrial Equipment

Suitable for industrial high voltage reactors in applications such as motor drives, renewable energy inverters, and heavy - duty power supplies. The core’s low loss and high stability characteristics make it an ideal choice for demanding industrial environments.

enewable Energy Infrastructure

Used in wind and solar power systems to filter harmonic currents and stabilize power output. The core’s ability to handle fluctuating loads ensures reliable performance in renewable energy conversion and distribution systems.
